Brigadier 4L Hose to BS6391 Type 3

£0.00 Incl. VAT £0.00 excl. VAT

£0.00

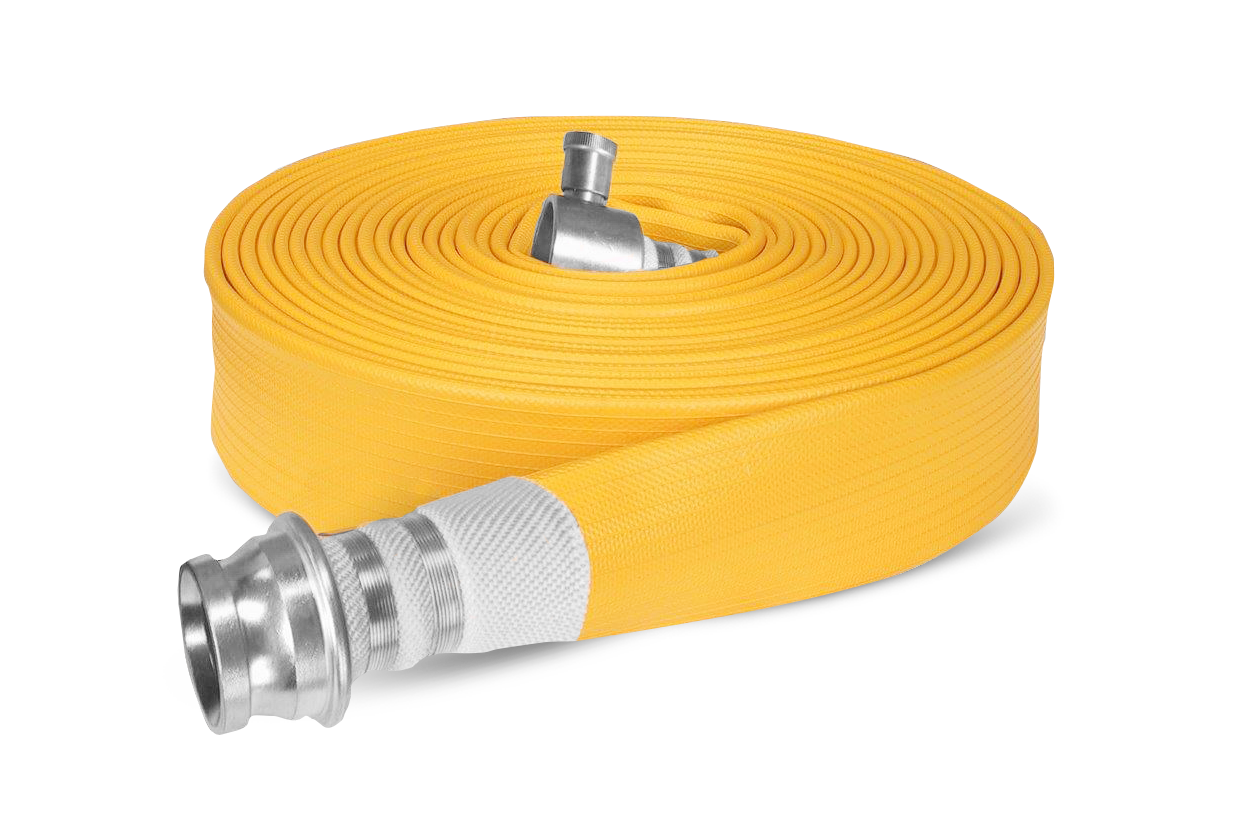

The Brigadier 4L Type 3 layflat heavy duty fire hose has a working temperature range of -30°C to +80°C
It Complies with BS 3691 Type 3 (60 bar) International Standards and many others.

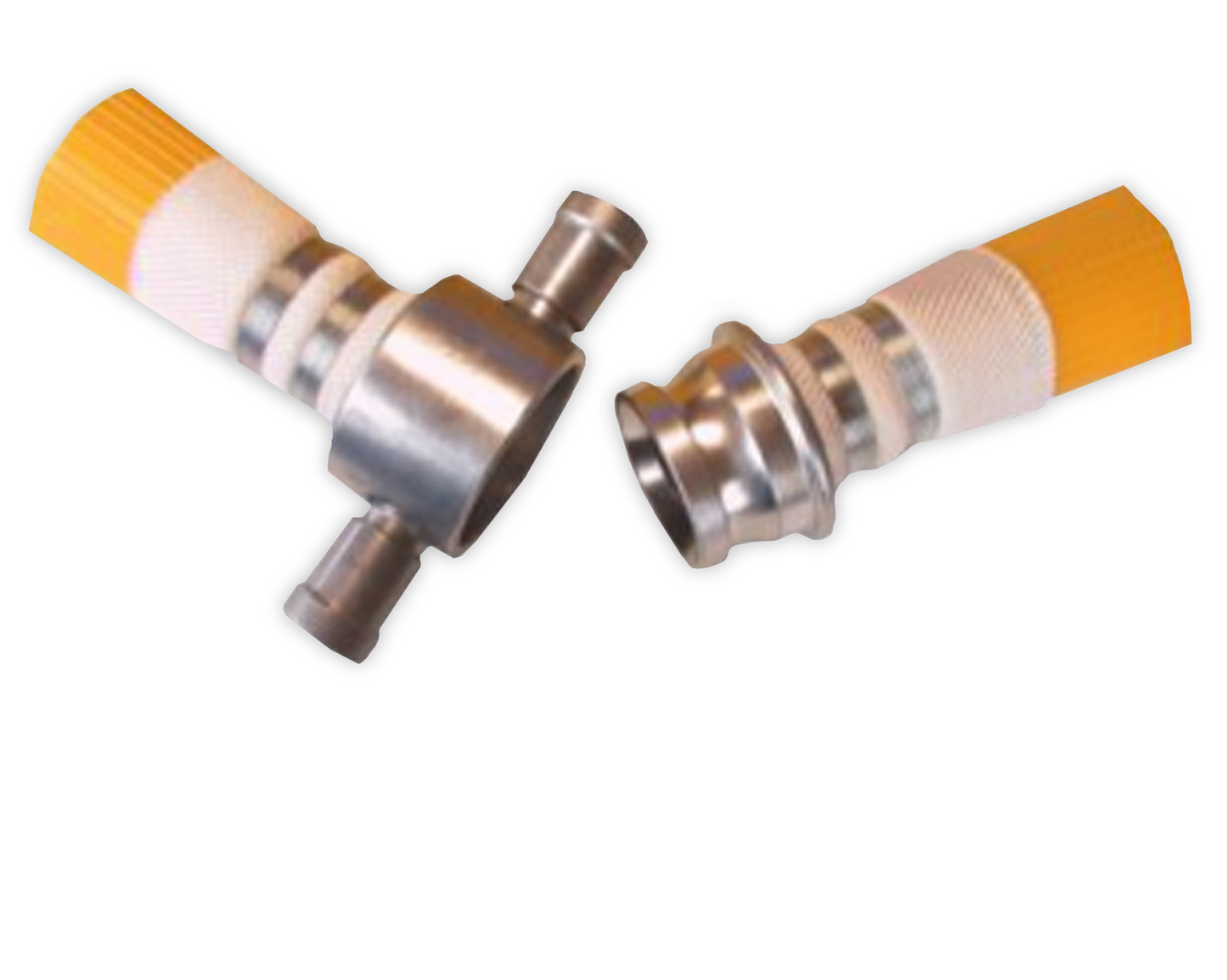

It can be coupled with BS 336 Instantaneous, Storz or all international coupling types wired-in for safety and security, with Stainless Steel wire.

Product variants

Call Us For Custom Orders

Secure Payment Options:

Quantity

View full details

Our Brigadier 4L type 3 layflat heavy duty fire hose is a general purpose extreme heavy duty delivery hose complying with BS 6391 Type 3 international standards. The hose is a high quality Nitrile-synthetic rubber which is extruded through the weave giving a ‘Unified’ construction with an additional layer made of Hypalon. External ribs offer further resistance to abrasion and ease of handling. This hose requires no drying after use.

Its abrasion resistance properties provide contact resistance to oil, fuel and chemical products along with ozone weather resistance. The unified construction guarantees a smooth inner surface and low friction loss for a long service life with minimal maintenance requirements and easy repair.

The Brigadier 4L heavy duty fire hose is characterised by its high abrasion resistance and extremely long service life. The additional layer of Hypalon makes the hose more resistant to contact with heat, abrasion and chemical products. The flexible and kink resistant structure is produced with very low twist. It is a multipurpose hose suitable for a wide range of applications.

The Brigadier 4L Type 3 heavy duty fire hose is principally used on oil and petrochemical refineries. However it is a multipurpose hose also commonly used within the shipboard and marine industry, general industrial use and for firefighting applications including forest fire fighting.

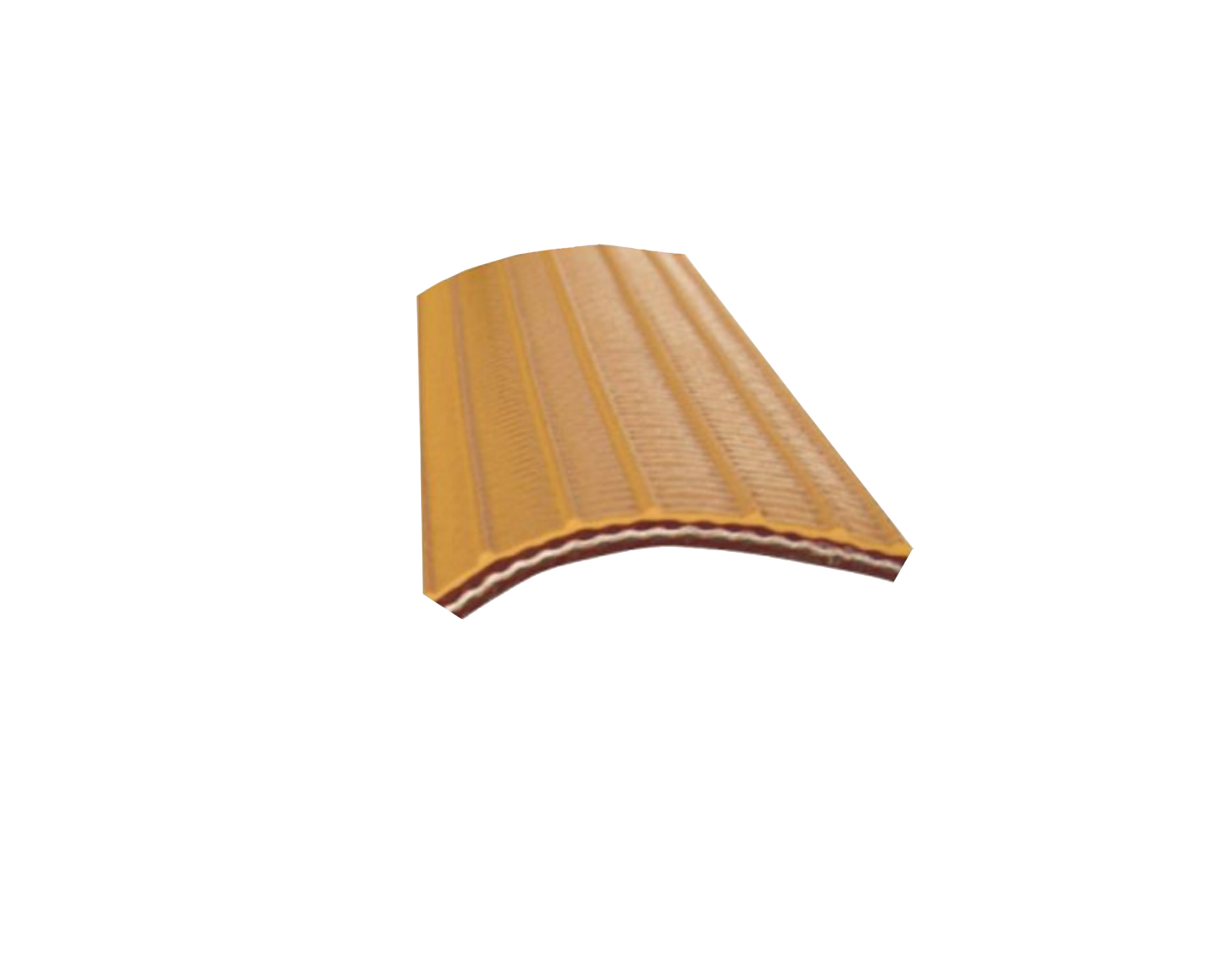

Hose Jacket & Lining:
The hose jacket is a 100% polyester high tenacity yarn with circular woven.

The unified construction is made of a high quality Nitrile synthetic rubber. The additional outer layer is made of Hypalon and is resistant to ozone and to external contact with oil products. The inner lining guarantees a smooth surface and low friction loss.

Hose Lengths:
All standard lengths can be supplied from stock, however Parsch UK specialise in the cutting and assembly of non-standard lengths up to 100 metres long to satisfy customers individual requirements.

The maximum change in length – 4% The maximum change in diameter – 4%
