Double Jacket P Hose Hose to NFPA 1961

Double Jacket P Hose Hose to NFPA 1961

£0.00 Incl. VAT £0.00 excl. VAT
£0.00
  • The Double Jacket P layflat fire hose has a working temperature range of -30°C to +80°C
  • It Complies with NFPA 1961, FM Standards.

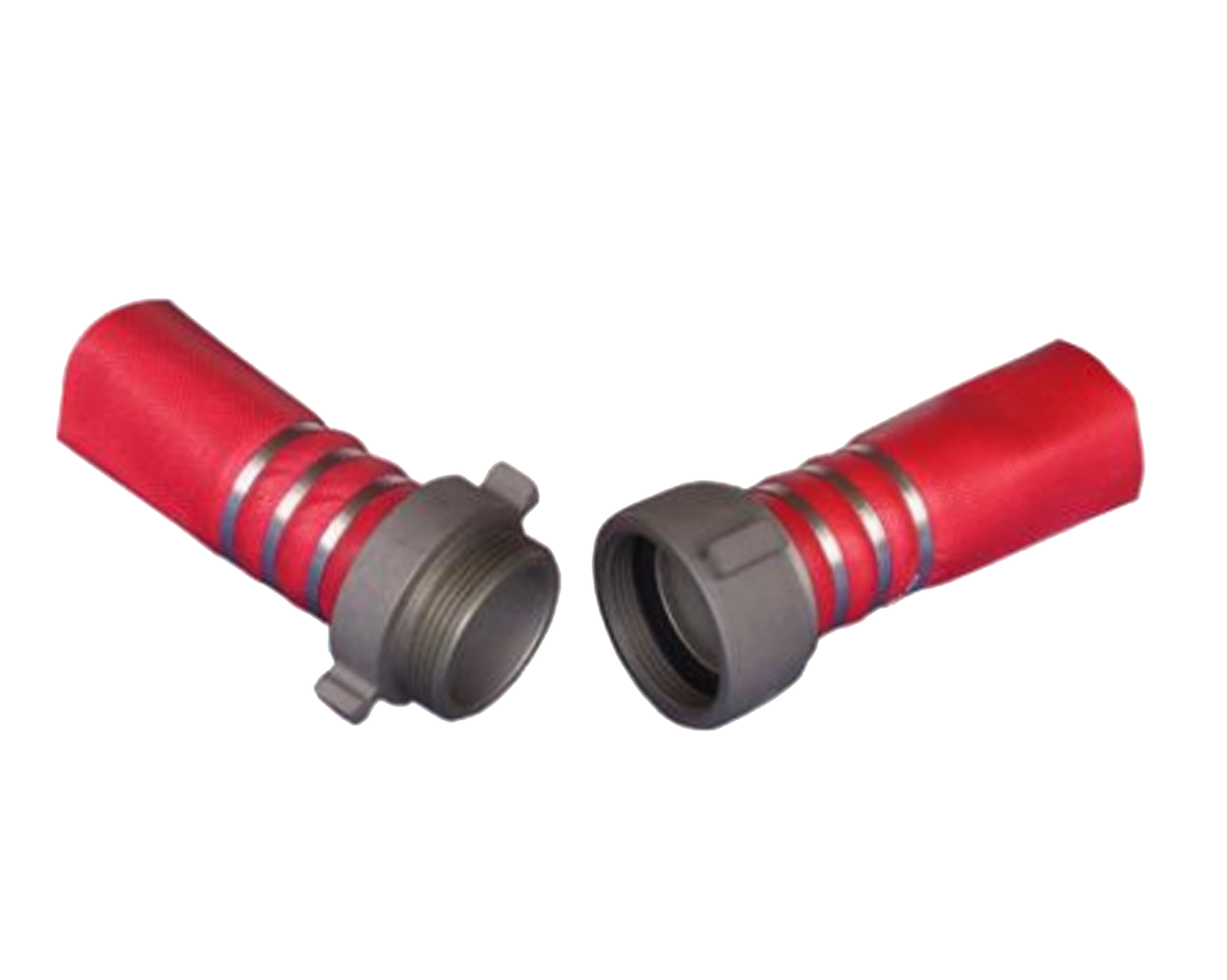

  • It can be coupled with NH, BS 336 Instantaneous, Storz or all international coupling types wired-in for safety and security, with Stainless Steel wire.
Phone icon
Call Us For Custom Orders

Secure Payment Options:

  • Amex
  • ApplePay
  • DinersClub
  • Discover
  • G-pay
  • Maestro
  • Mastercard
  • PayPal
  • ShopPay
  • Visa
Contact Us
View full details

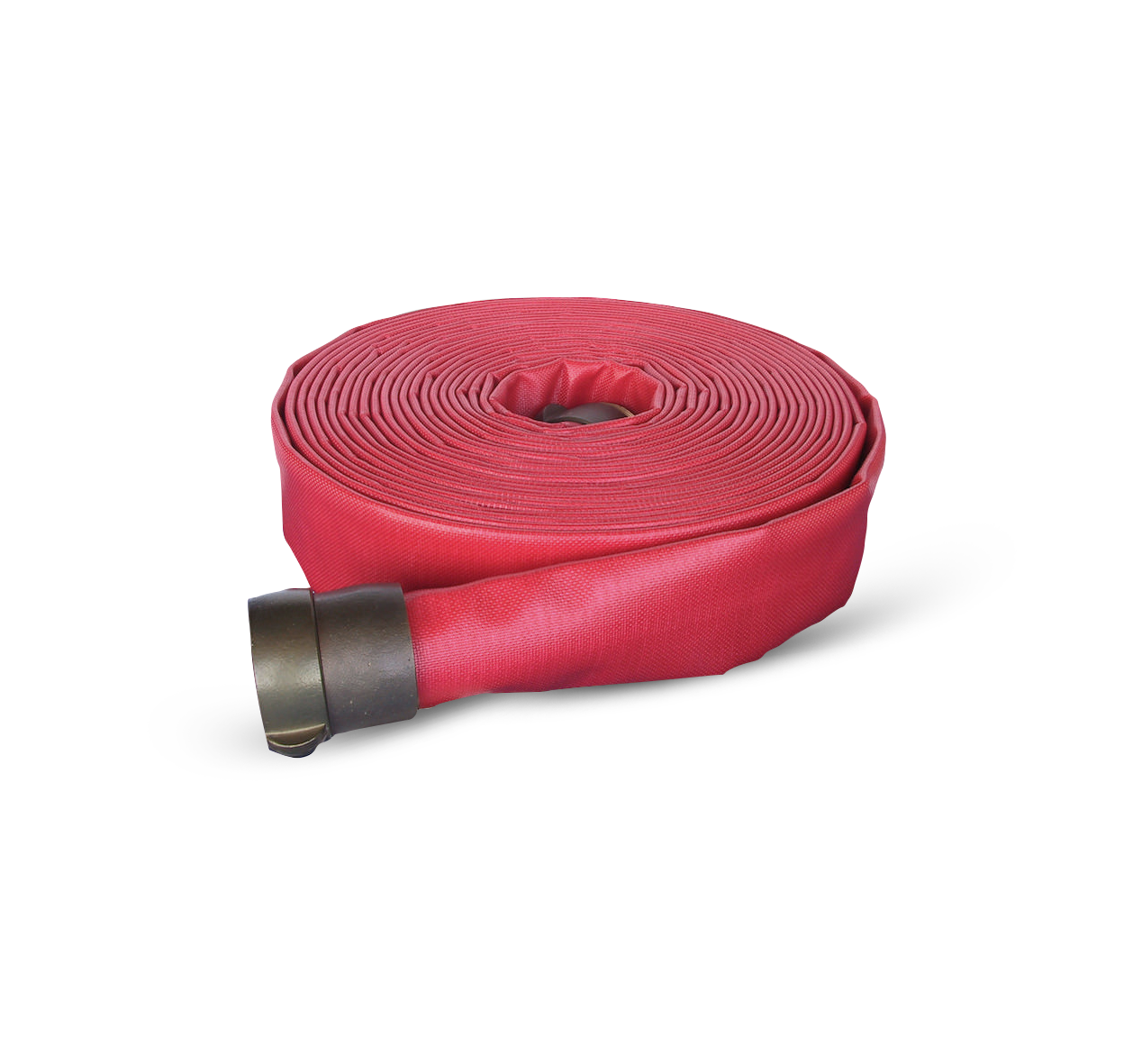

Our Double Jacket P fire hose is a general purpose all synthetic layflat delivery hose complying with NFPA 1961 standards. The hose is a two-component system consisting of a black SBR synthetic rubber inner lining and a synthetic polyester jacket, bonded together with NBR-synthetic adhesive. An additional polyester, polyurethane coated outer jacket then provides extra resistance to abrasion.

Its abrasion resistance properties provide contact resistance to oil, fuel and chemical products along with ozone weather resistance. The two component lining system guarantees a smooth surface and low friction loss for a long service life with minimal maintenance requirements and easy repair.

The Double Jacket P fire hose is characterised by its long service life, flexible and kink resistant structure produced with very low twist and small coil diameter. It is a multipurpose hose suitable for a wide range of applications.

by its long service life, flexible and kink resistant structure produced with very low twist and small coil diameter. It is a multipurpose hose suitable for a wide range of applications.

The Double Jacket P layflat fire hose is principally used by Municipal and Industrial fire brigades. However it is a multipurpose hose also commonly used within the shipboard and marine industry, on refineries and construction sites, general industrial and with snowmaking equipment.

Inner Hose:
The inner and outer hose jacket is a 100% polyester high tenacity yarn with circular woven and plain weave. A further high quality polyurethane coating is applied to the outer jacket.

Hose Lining:

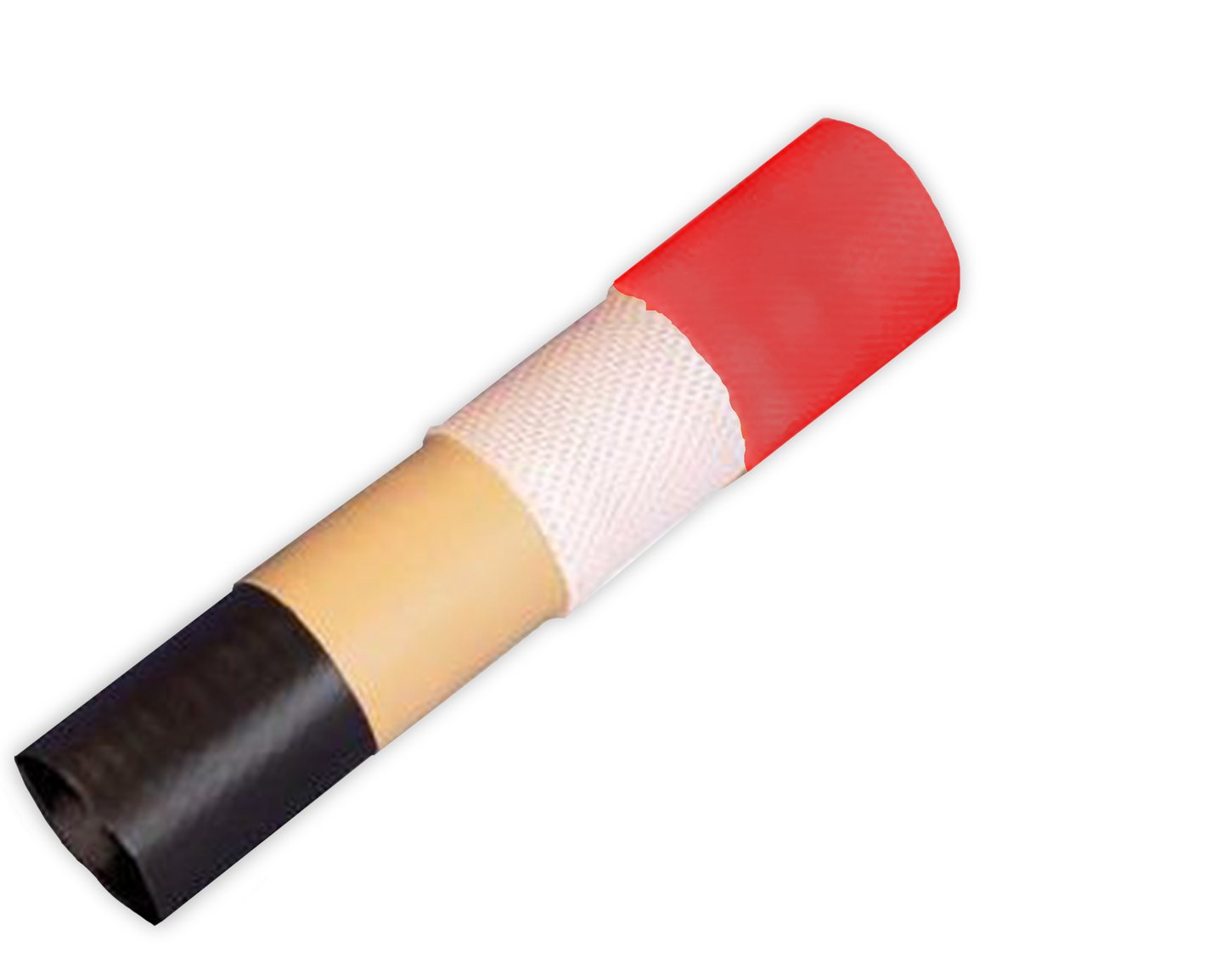

The hose lining and cover is a two-component system consisting of a black SBR synthetic rubber inner lining and a synthetic polyester jacket, bonded together with NBR-synthetic adhesive. Resistant to ozone and to external contact with oil products. The lining guarantees a smooth surface and low friction loss.

Hose Lengths:
All standard lengths can be supplied from stock, however Parsch UK specialise in the cutting and assembly of non-standard lengths up to 100 metres long to satisfy customers individual requirements.

Maximum loose hose length is 300 metres and is made to order.

The maximum change in length – 1% The maximum change in diameter – 3%

Download Datasheet
Double Jacket P Hose
