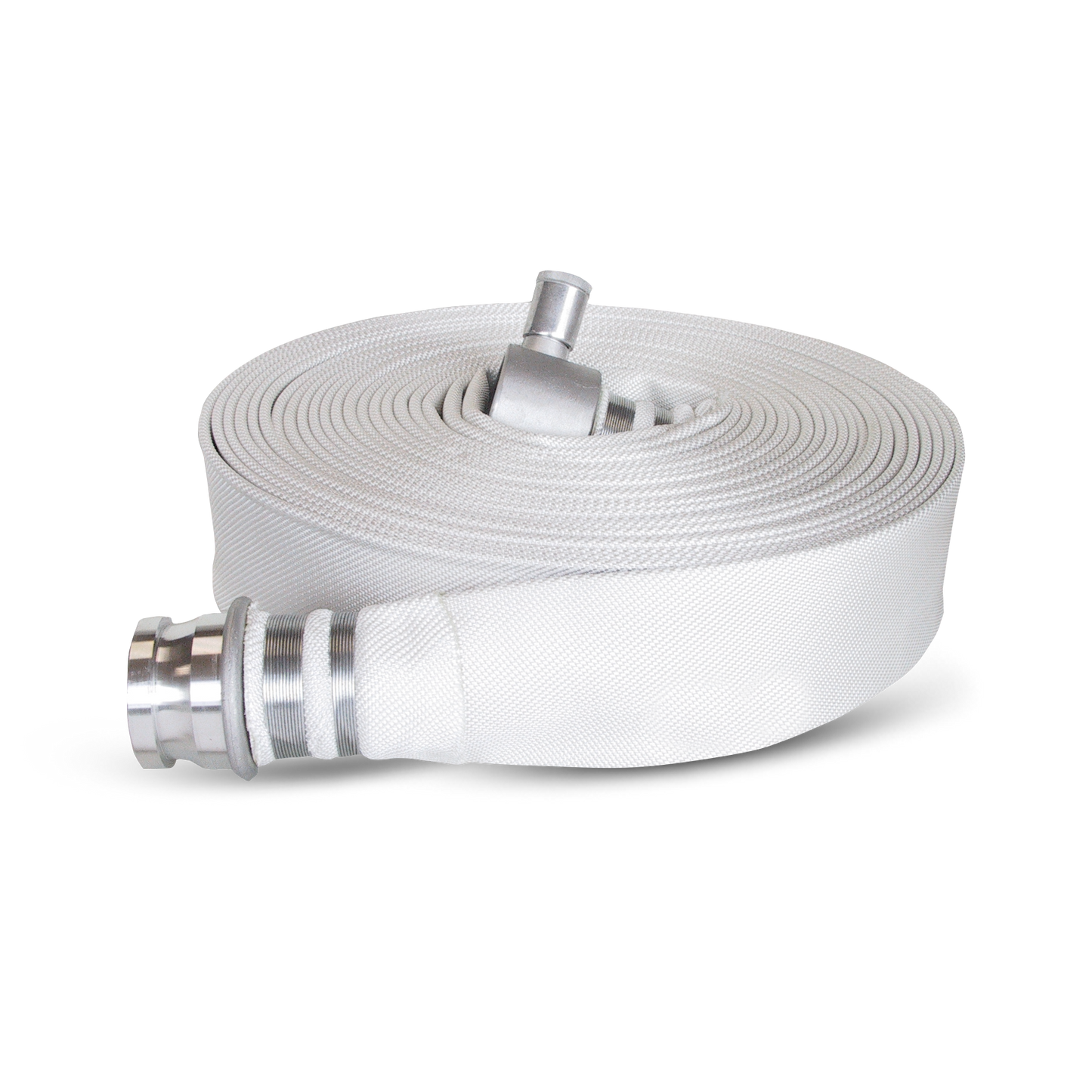

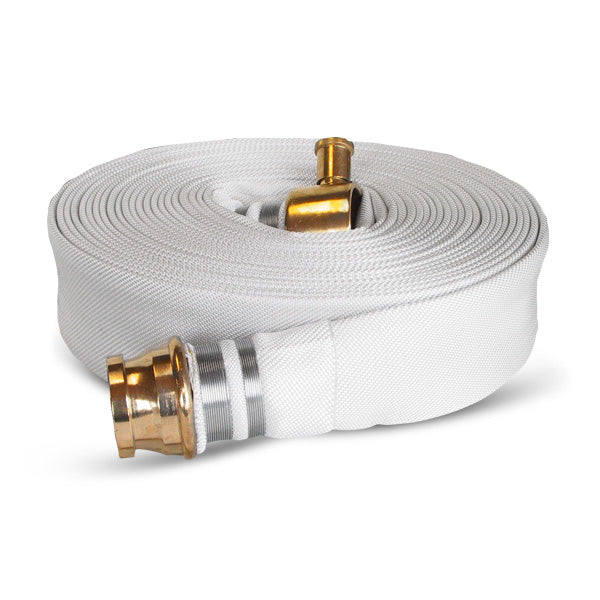

Marine Hose to BS6391 Type 1

£0.00 Incl. VAT £0.00 excl. VAT

£0.00

The Type 1 layflat Marine fire hose has a working temperature range of -30°C to +80°C
Complies with BS 3691 Type 1 (50 bar) International Standards and many others.

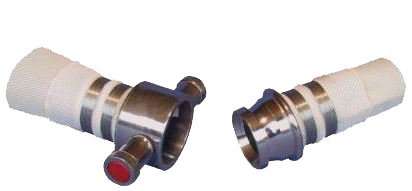

Can be coupled with BS 336 Instantaneous, Storz or all international coupling types wired-in for safety and security, with Stainless Steel wire.

Product variants

Call Us For Custom Orders

Secure Payment Options:

Quantity

View full details

Our Type 1 layflat Marine fire hose is a general purpose all synthetic layflat delivery hose complying with BS 6391 Type 1 international standards. The hose is a two-component system consisting of a black SBR synthetic rubber inner lining and a synthetic polyester outer jacket, bonded together with NBR-synthetic adhesive.

Its abrasion resistance properties provide contact resistance to oil, fuel and chemical products along with ozone weather resistance. The two component lining system guarantees a smooth surface and low friction loss for a long service life with minimal maintenance requirements and easy repair.

The Marine fire hose is characterised by its lightweight, flexible and kink resistant structure produced with very low twist and small coil diameter. It is a multipurpose hose suitable for a wide range of applications.

The Marine Type 1 layflat fire hose is principally used by Municipal and Industrial fire brigades.

However it is a multipurpose hose also commonly used within the shipboard and marine industry, on refineries and construction sites, in agriculture and irrigation, general industrial use and for all wash-down applications.

Hose Jacket:

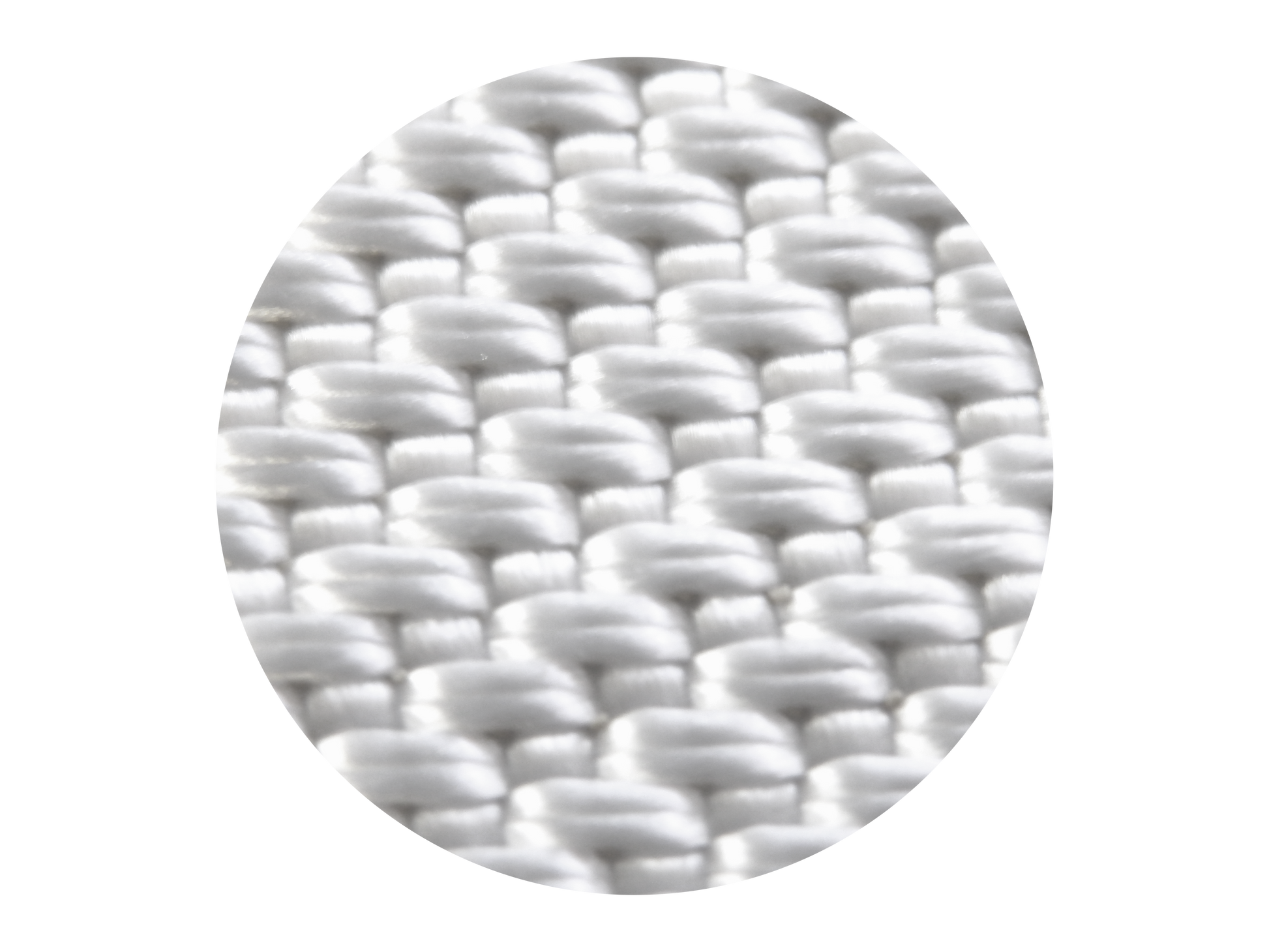

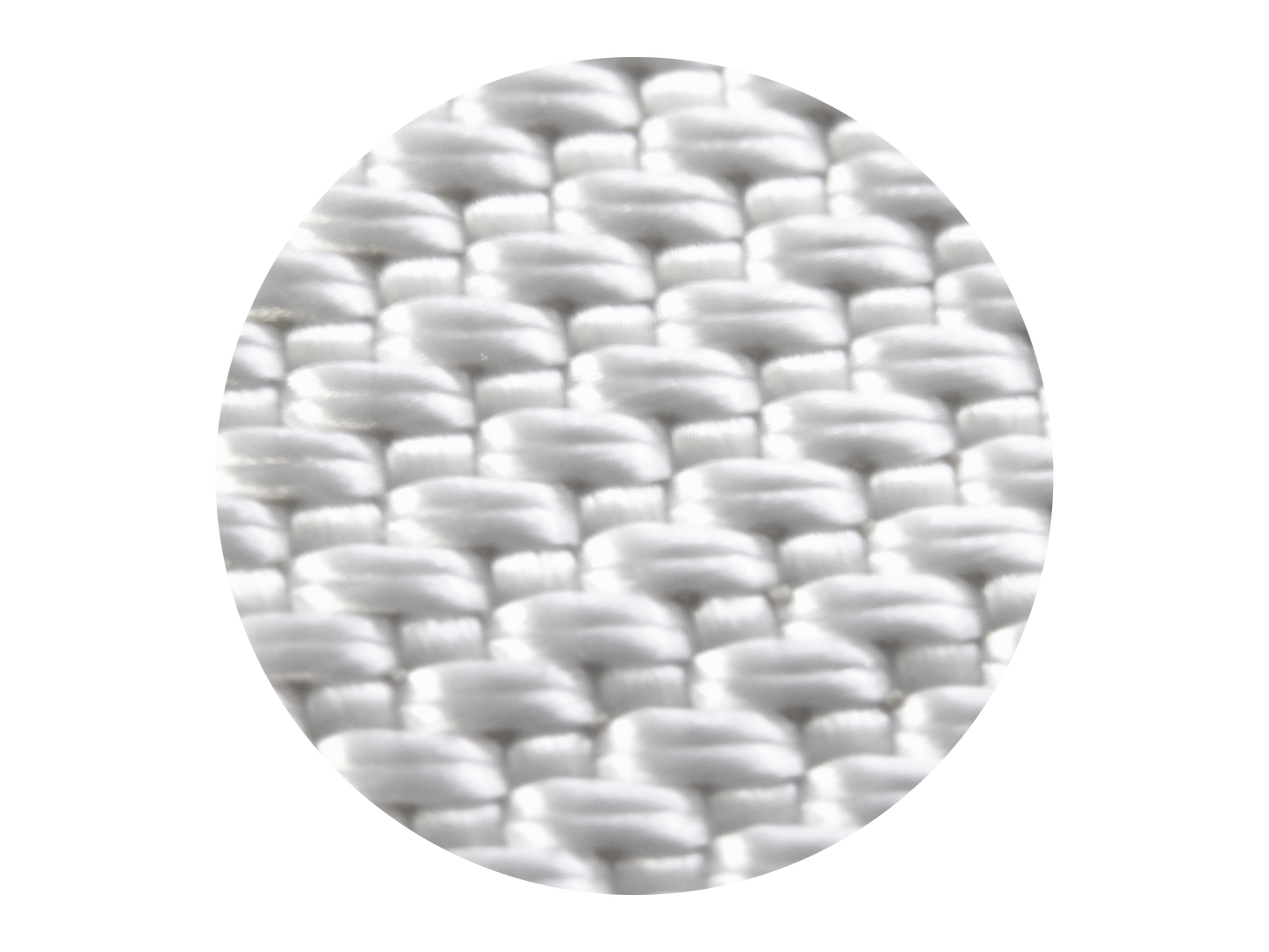

The hose jacket is a 100% polyester high tenacity yarn with circular woven, warp threads 2 ply twisted, plain weave.

Hose Lining:

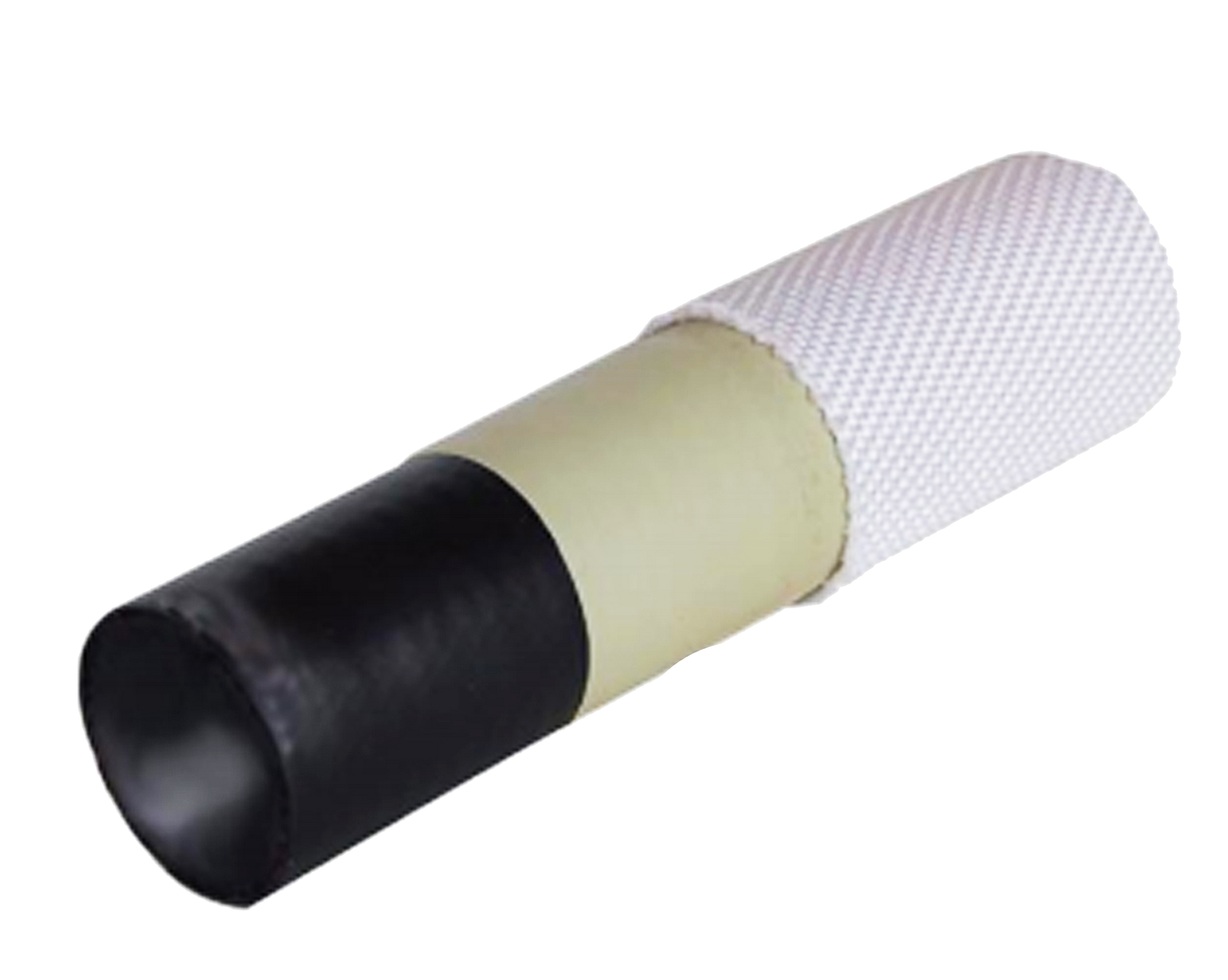

The hose lining and cover is a two-component system consisting of a black SBR synthetic rubber inner lining and a synthetic polyester outer jacket, bonded together with NBR-synthetic adhesive. Resistant to ozone and to external contact with oil products. The lining guarantees a smooth surface and low friction loss.

Hose Lengths:
All standard lengths can be supplied from stock, however Parsch UK specialise in the cutting and assembly of non-standard lengths up to 100 metres long to satisfy customers individual requirements. Maximum loose hose length is 300 metres and is made to order.

The maximum change in length – 3%

The maximum change in diameter – 3%
