Oil Special Layflat Hose

Oil Special Layflat Hose

£0.00 Incl. VAT £0.00 excl. VAT
£0.00
  • The Oil Special layflat hose has a working temperature range of -30°C to +80°C
  • It complies with DIN 14811 and is Electro Conductivity tested by PTB.
  • It is to be coupled with Storz system.

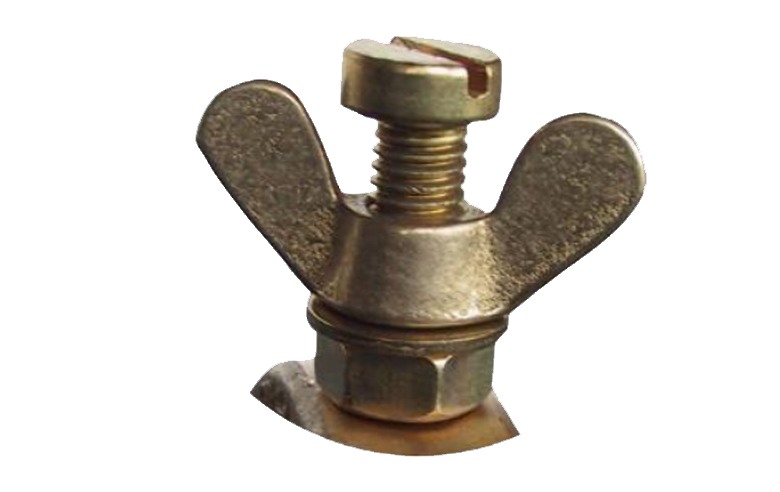

    Note: The special inner lining of Oil Special allows coupling to be attached without the need to make direct contact with the copper wire braids. The coupling are wired-in for safety and security, with Stainless Steel wire.
Phone icon
Call Us For Custom Orders

Secure Payment Options:

  • Amex
  • ApplePay
  • DinersClub
  • Discover
  • G-pay
  • Maestro
  • Mastercard
  • PayPal
  • ShopPay
  • Visa
Contact Us
View full details

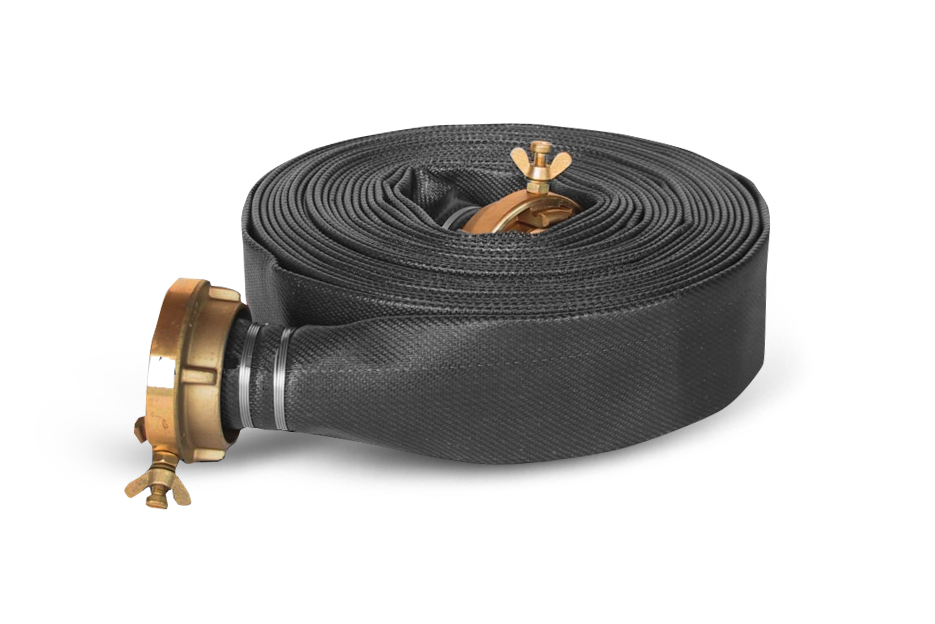

The Parsch UK Oil Special layflat hose is an Electro-conductive all synthetic layflat delivery hose complying with DIN 14811. The hose is a two-component system consisting of a black NBR synthetic, electro-conductive rubber inner lining resistant to oil and fuel. The external jacket is made up of a synthetic polyester bonded together with NBR-synthetic adhesive. The hose is finally colour coated black and given a polyurethane coating which increases its abrasion resistance.

Its abrasion resistance properties provide contact resistance to oil, fuel and chemical products along with ozone weather resistance. The two component lining system guarantees a smooth surface and low friction loss for a long service life with minimal maintenance requirements and easy repair.

The Oil Special layflat hose is characterised by its lightweight, flexible and kink resistant structure produced with very low twist.

The Oil Special layflat hose is principally used by Municipal fire brigades, Industrial fire brigades, within the shipboard and marine industry, on refineries and construction sites, and underground mining.

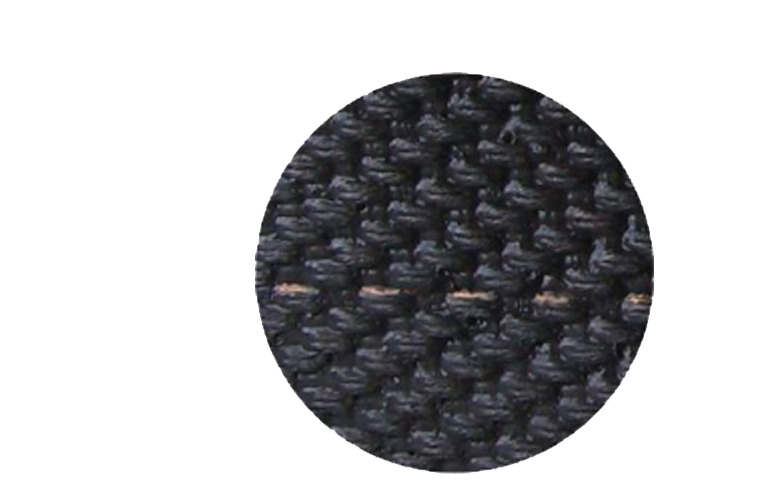

Hose Jacket:
The hose jacket is a 100% polyester high tenacity yarn with circular woven, warp threads 2 ply twisted, twill with 3 interwoven copper wire braids.

Hose Lining:
The hose lining and cover is a two-component system consisting of a black NBR synthetic, electro conductive rubber inner lining and a synthetic polyester outer jacket, bonded together with NBR-synthetic adhesive. Resistant to ozone and to external contact with oil and fuel. The lining guarantees a smooth surface and low friction loss.

Hose Lengths:
All standard lengths can be supplied from stock, however Parsch UK specialise in the cutting and assembly of non-standard lengths up to 100 metres long to satisfy customers individual requirements.

Maximum loose hose length is 300 metres and is made to order.

The maximum change in length – 3% The maximum change in diameter – 3%

Download Datasheet
Oil Special Hose
