Reflex Industrial Hose to BS6391 Type 1

£220.09 Incl. VAT £183.41 excl. VAT

£183.41

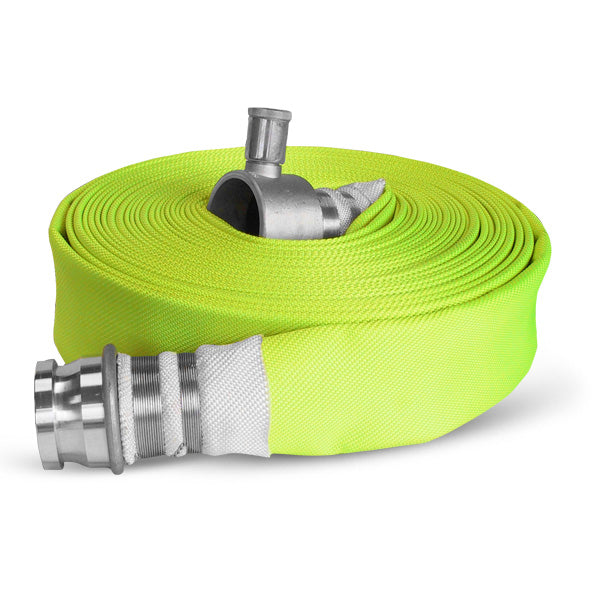

All stock hose assemblies coupled with BS336 Instantaneous couplings as standard.
It Complies with BS 3691 Type 1 (40 bar) International Standards and many others.
Uncoupled hose lengths available in various diameters - cut to order.

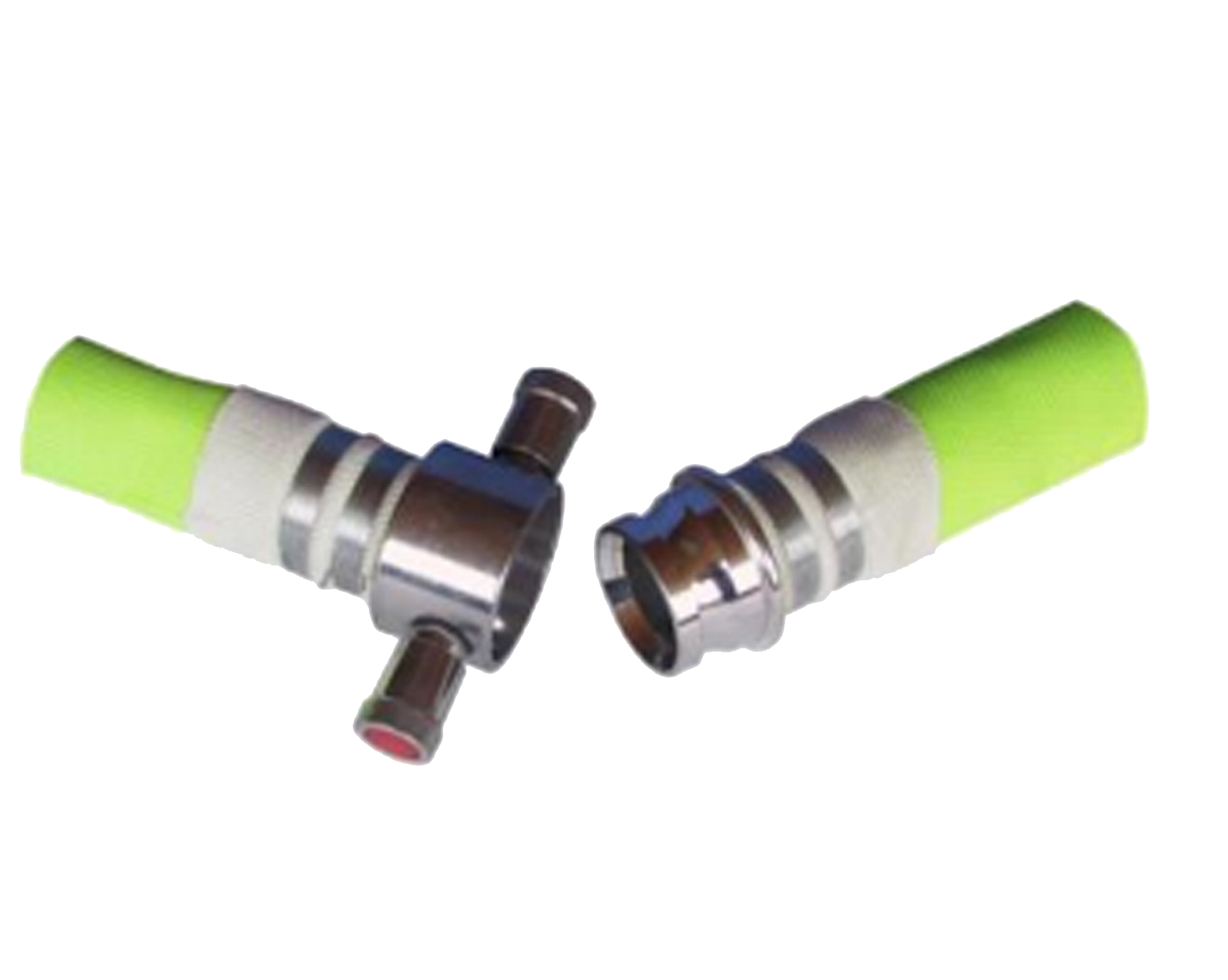

All international coupling types available on request - wired-in for safety and security, with Stainless Steel wire.

Product variants

Call Us For Custom Orders

Secure Payment Options:

Quantity

View full details

Our Reflex type 1 layflat industrial fire hose is a general purpose all synthetic layflat delivery hose complying with BS 6391 Type 1 international standards. The hose is a two-component system consisting of a black SBR synthetic rubber inner lining and a synthetic polyester outer jacket, bonded together with NBR-synthetic adhesive.

Its abrasion resistance properties provide contact resistance to oil, fuel and chemical products along with ozone weather resistance. The two component lining system guarantees a smooth surface and low friction loss for a long service life with minimal maintenance requirements and easy repair.

The Reflex type 1 layflat fire hose is characterised by its unique high visibility jacket and has a lightweight, flexible and kink resistant structure produced with very low twist and small coil diameter. It is a multipurpose hose suitable for a wide range of industrial applications.

The Reflex Type 1 layflat fire hose is principally used by Municipal and Industrial fire brigades. However it is a multipurpose hose also commonly used within the shipboard and marine industry, on refineries and construction sites, general industrial use and for all wash-down applications.

Inner Hose:

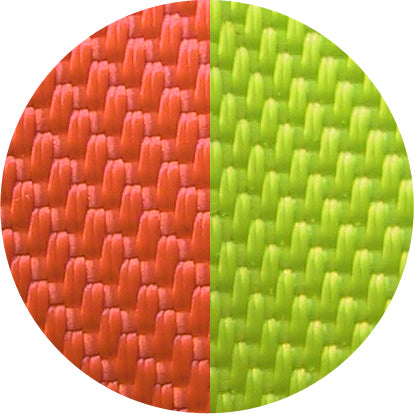

The hose jacket is a 100% dyed polyester high tenacity yarn with circular woven, warp threads 3 ply twisted.

Hose Lining:

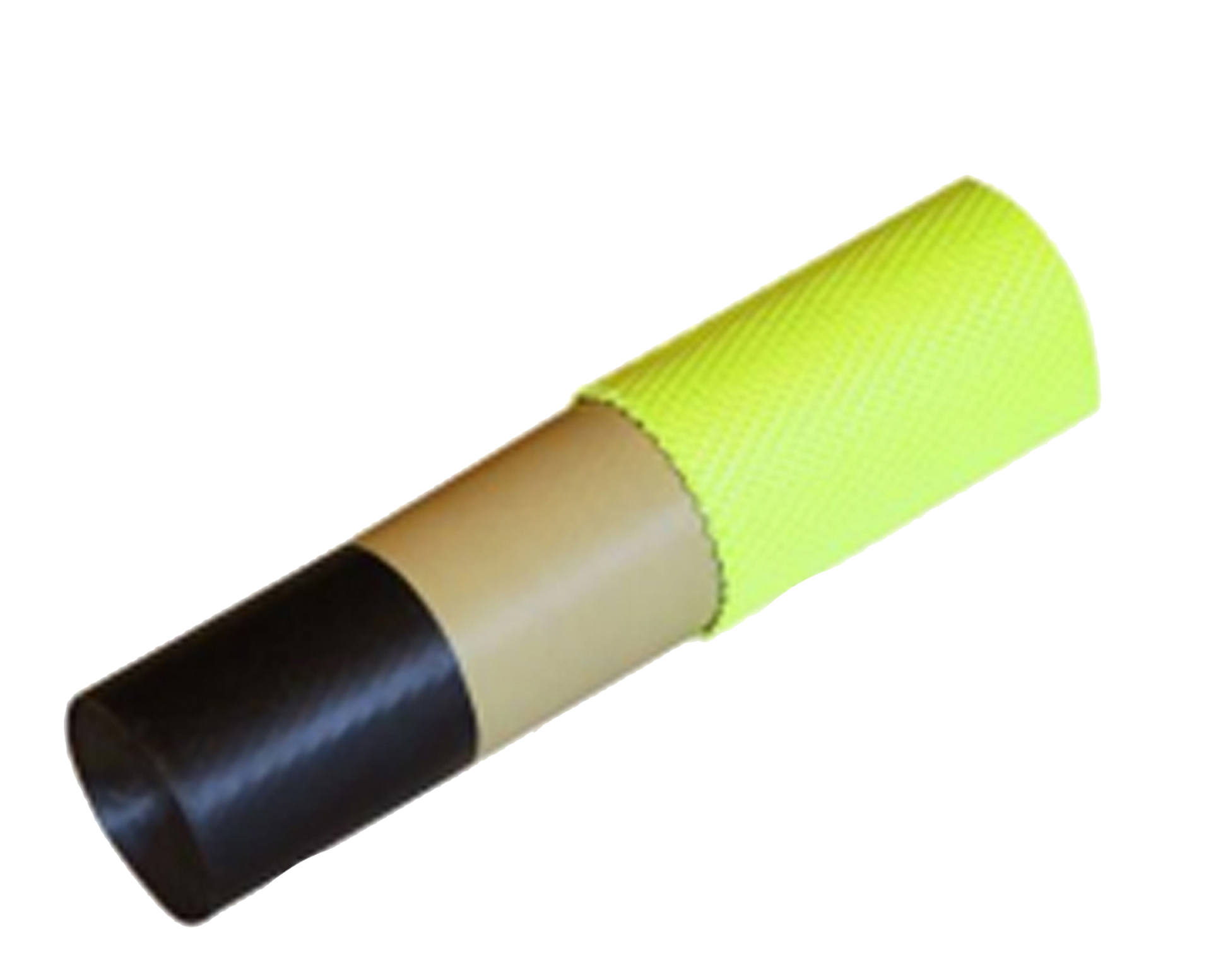

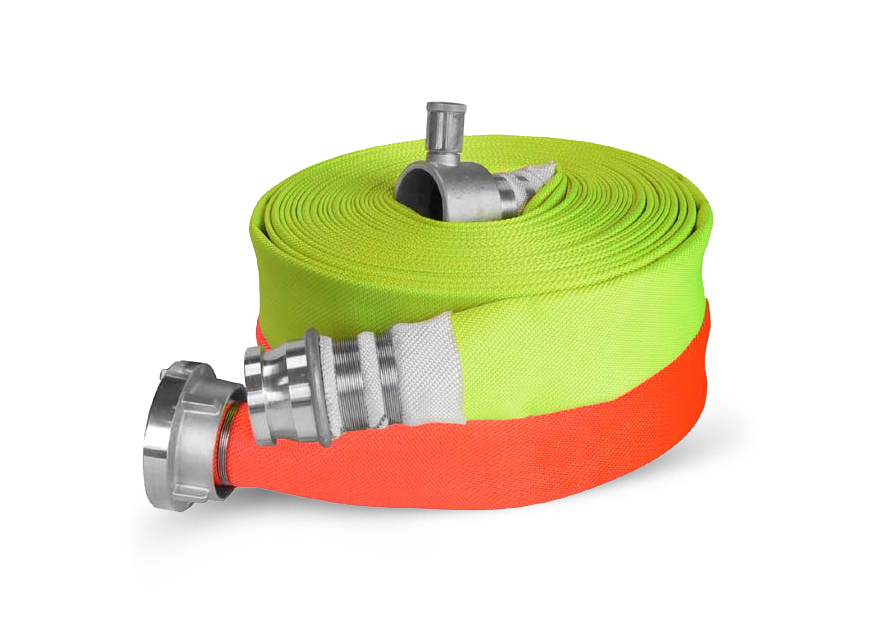

The hose lining and cover is a two-component system consisting of a black SBR synthetic rubber inner lining and a synthetic polyester outer jacket, bonded together with NBR-synthetic adhesive. Resistant to ozone and to external contact with oil products. The lining guarantees a smooth surface and low friction loss. The exterior jacket is available in fluorescent yellow or orange for high-vis increased workplace safety.

Hose Lengths:
All standard lengths can be supplied from stock, however Parsch UK specialise in the cutting and assembly of non-standard lengths up to 100 metres long to satisfy customers individual requirements.

Maximum loose hose length is 300 metres and is made to order.

The maximum change in length – 3% The maximum change in diameter – 3%
